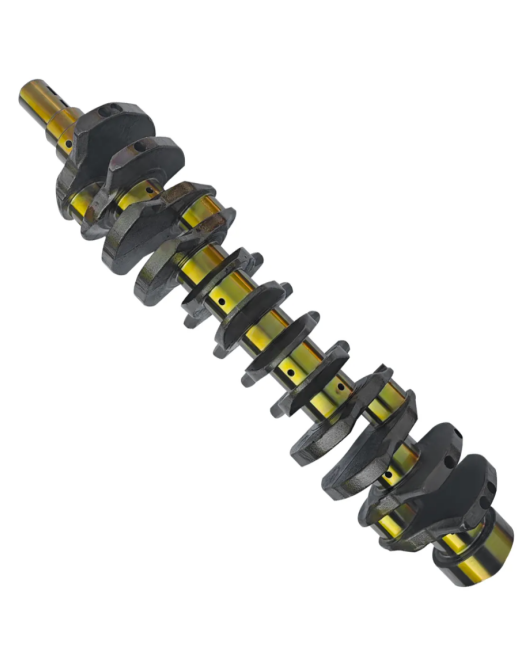

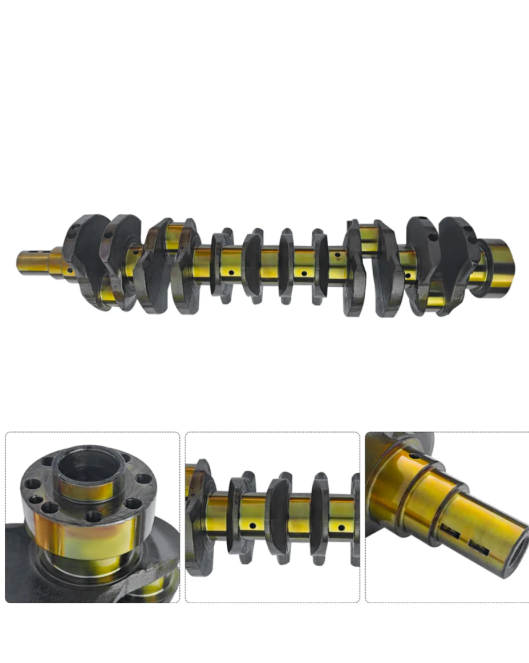

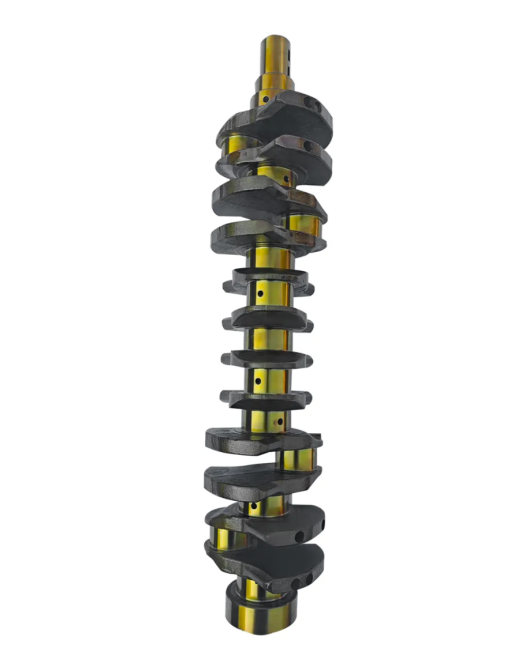

Toyota 1HD 1HZ Crankshaft
13411-17010、13411-17011、13411-17012
This crankshaft is the ultimate replacement for Toyota’s iconic 1HD/1HZ engines, combining OEM precision, forged-steel durability, and global supply chain reliability—perfect for independent stations targeting off-road, commercial, and industrial diesel engine markets.
Product Description
- Our premium crankshaft is engineered exclusively for Toyota 1HZ (4.2L NA) & 1HD-T/1HD-FT/1HD-FTE (4.2L Turbo) inline 6-cylinder diesel engines (1990–2007 production). As the core rotating component converting reciprocating motion to rotational power, it’s built to withstand the extreme torque and heavy-duty cycles of Toyota’s legendary 4.2L diesel platforms, making it ideal for Land Cruiser off-road use, Coaster bus operations, and industrial applications.
Product Advantages
100% brand-new (no remanufactured cores), each unit passes rigorous quality control: dimensional inspection, magnetic particle testing, dynamic balancing, and hardness testing (surface hardness ≥50HRC). Fully compliant with ISO 9001 & TS 16949 standards, it directly replaces OEM part numbers.
Manufactured from high-grade forged steel (4340 billet available) or premium cast iron (OEM-grade), this crankshaft undergoes precision forging/casting, CNC machining, heat treatment (nitriding + induction hardening), and fillet rolling to meet strict Toyota OEM specifications. Key dimensions: total length 788mm, main journal diameter 67mm, rod journal diameter 59mm, stroke 100mm, with tight tolerances of ±0.015mm for perfect fit. Integrated oil passages ensure optimal lubrication, while precision-balanced counterweights eliminate vibration and extend bearing life.
Product Parameter
|
Item |
Details |
|
Product Name |
Toyota (Special Fit for Toyota 1HZ 4.2L naturally aspirated & 1HD-T/1HD-FT/1HD-FTE 4.2L turbocharged inline 6-cylinder diesel engines (1990–2007); fully compliant with Toyota OEM standards, made of high-grade forged alloy steel (4340 billet optional) or premium cast iron;processed by precision forging/casting, CNC machining, nitriding + induction hardening and fillet rolling to ensure high strength, durability and stable performance. |
|
Applicable Models |
Fits Toyota 1HD (1HD-T/1HD-FT/1HD-FTE) & 1HZ 4.2L diesel engines; widely compatible with Toyota Land Cruiser (HDJ78/79, HDJ80/81, HDJ100, HZJ70/71/73/75/76/78/79, HZJ80/81, HZJ100), Toyota Coaster (HDB20/30/31/50/51, HZB30/31/40/50/56/70), Toyota Blizzard (LD20) and Toyota ToyoAce (LY20/LY30); supports direct replacement without modification, adapting to off-road, commercial and industrial application scenarios. |
|
Part Numbers |
13411-17010、13411-17011、13411-17012 |
|
Material |
Cast iron |
|
Warranty Period |
12 months |
|
MOQ (Minimum Order Quantity) |
50 units for standard models (in-stock); 500 units for customized versions |
